Managing Your Solaro QR1 Temperature

Recent QR1/QR1-UC models include an advanced cooling system designed to extend product life and maintain optimal performance.

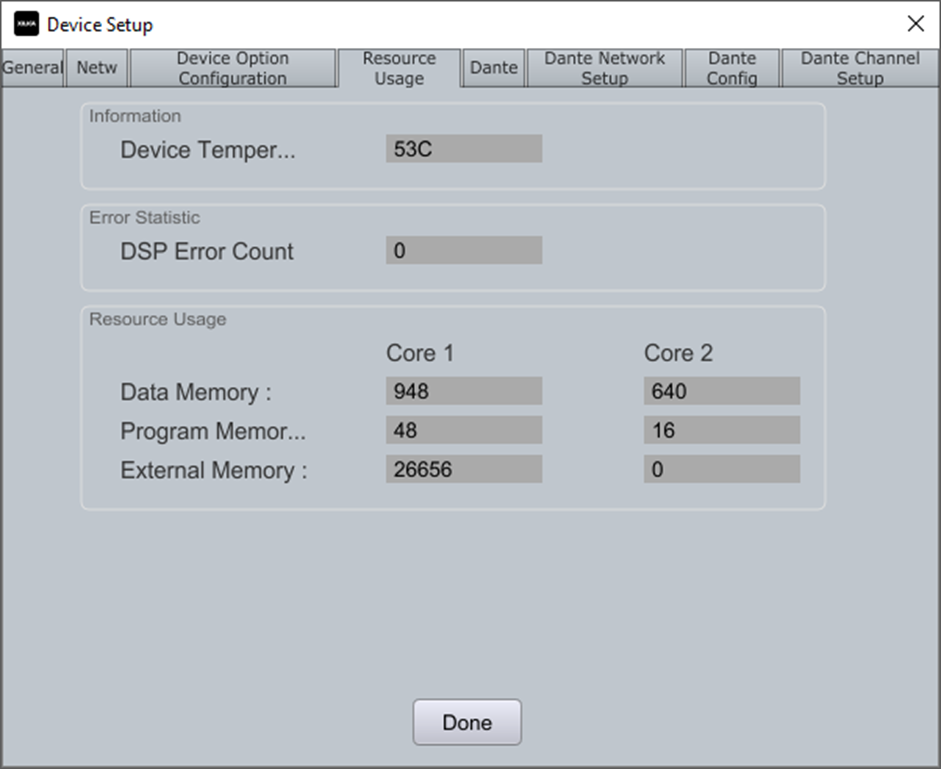

You can check your device's temperature in just a few steps:

1. Open Network View

2. Select Device Setup

3. Navigate to Resource Usage

A typical mainboard temperature reading falls between 50°C and 60°C.

The QR1's intelligent cooling system automatically adjusts to maintain optimal temperatures:

• Low-speed fan activates at 55°C

• High-speed fan engages at 60°C

Several factors influence your device's operating temperature:

• Number of IO cards installed

• Active phantom power channels

• Project file complexity

For proper thermal management:

• Ensure the top cover fan vent remains unobstructed

• Maintain ambient temperature between 0-40°C

• Allow adequate ventilation around the unit

Proper installation and monitoring help ensure your Solaro QR1 delivers reliable performance for years to come
