Controlling Multiple Parameters Simultaneously with XTouch, Lucia or XWP

In Xilica Designer, you can "stack" similar parameters to control them together with a single action.

1. Open the DSP device design and a XTouch Control design side-by-side

2. From within the DSP module you wish to control, Ctrl+click and drag a parameter into the XTouch Control window

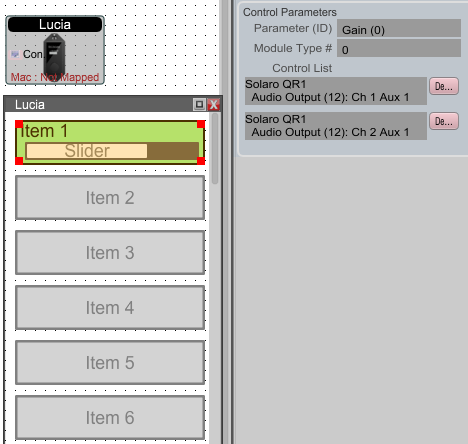

3. Ctrl+click then drag the second item of similar type on top of the first in the XTouch window. The item will highlight in green to indicate a stacked control

In the Object Property menu, under Control Parameters, the Control List displays all controls associated with the button/fader.

To change the button/fader type, select Dial Type under Control Appearance/Functionality. Choose from a variety of options, including:

• Vertical slider, vertical custom slider, Horizontal slider, horizontal custom slider

• Compact dial, text dial, Round dial, Custom round dial

• Up/down dial, Up/down dial with scale

• Option box, Radio button
