Using the CueCore2 Lua Driver in Xilica Designer for Lighting Control

The CueCore2 is a compact lighting controller designed for fixed and semi-fixed installations and architectural lighting. Xilica Designer includes a Lua-based driver that integrates easily with this controller through its API.

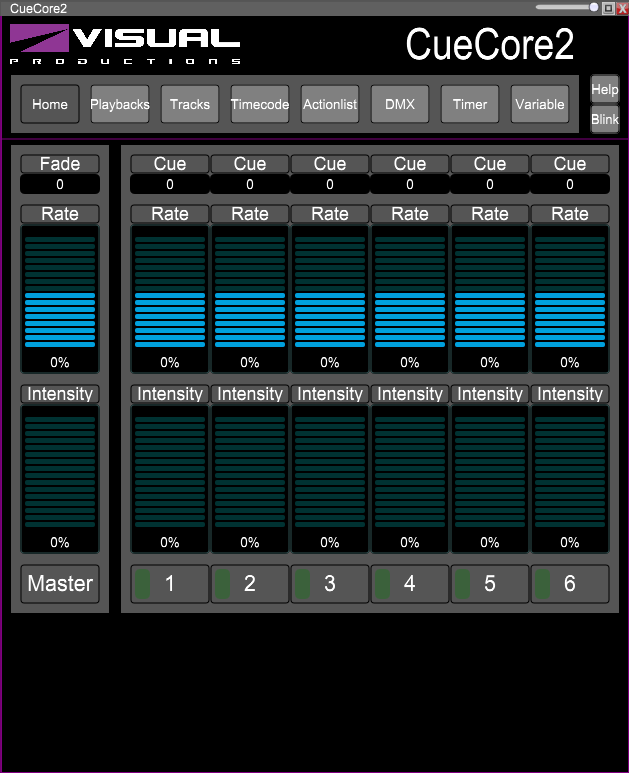

1. In Xilica Designer, drag-and-drop the CueCore2 driver from the Component Library into your Project View

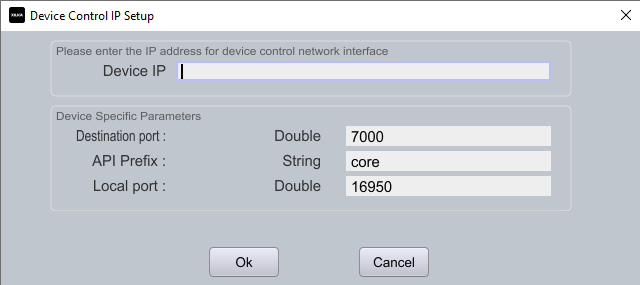

2. Right-click the driver and select "Map Physical Device" to configure connection settings



3. Configure the following settings:

   • Set the device IP address to match your CueCore2

   • Ensure the destination port matches the TCP port on the CueCore2's settings page

   • Verify the API prefix in the driver matches the API prefix in the CueCore2 settings

   • Set a unique local port (especially important when using multiple instances of this driver)

4. Use vManager software to discover your CueCore2 and configure its network settings

• The CueCore2 supports a maximum of 8 simultaneous TCP connections

• For additional resources, visit: www.visualproductions.nl/downloads

• For support, contact: support@visualproductions.nl
