Sonia Amp Power Output
Edited

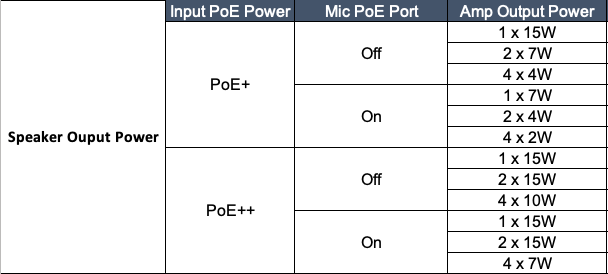

The output power of Sonia Amp is dependent on the PoE input power and PoE Mic Port connection. Please see the table below for the output power rating for each scenario:
If two Sonia C5 speakers are connected to a channel, the channel output power is divided equally between them. For example, if two (2) Sonia C5 speakers are connected to all four channels for the 4×10W scenario, then each speaker will obtain 5W of power.
Note: PoE++ power measured according to IEEE 802.3bt, Type 3 (60W)
See info about the ACC-POE-95W PoE injector
